MODEL 7707L LARGE DIAMETER COUPLING

The Shurjoint Model 7707L Large diameter couplings in sizes 28" - 42" / 700 mm – 1050 mm are designed for joining large diameter IPS pipe that can be roll grooved.  All couplings feature a six to eight segment design, incorporating two bolts at each segment joint to ensure a positive connection and seal.

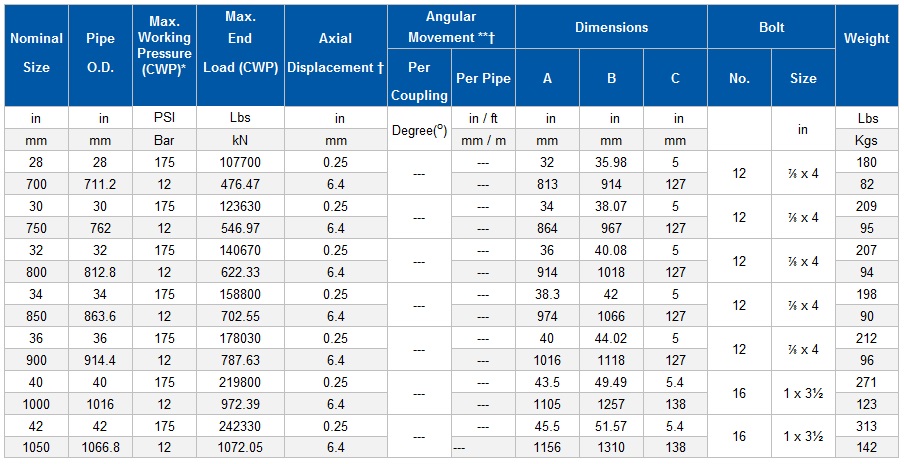

* Working pressure is based on roll-grooved standard wall carbon steel pipe.
† Allowable Axial Displacement and Angular Movement (deflection) figures are for roll grooved standard steel pipe.  Values for cut grooved pipe will be double that of roll grooved.  These values are maximums; for design and installation purposes these figures should be reduced by: 50% for ¾” – 3½”; 25% for 4” and larger to compensate for jobsite conditions.

** Deflection or angular movement given is the maximum value that a coupling allows. When using the given maximum angles for a curved layout, proper bracing should be used to counter pressure thrust that will occur when the system is pressurized. Flexible couplings can be used for angular movement and or thermal expansion, though please note individual coupling(s) cannot be used to their maximums for both types of movement within a system at the same time.
