MODEL SJ-400-W BUTTERFLY VALVE WITH WORM GEAR

The Model SJ-400-W Butterfly Valve is a grooved-end stainless steel butterfly valve designed for 300 psi service, supplied with a worm gear operator.  The ISO5211 mounting pad allows for the mounting of power actuators. The end-to-end dimensions conform to MSS SP-67. The body is available in grade CF8M (type 316) to ASTM A743 with integral neck and ISO mounting top flange. The disc is a dual-seal type, encapsulated with Gr. E EPDM for cold and hot water services.

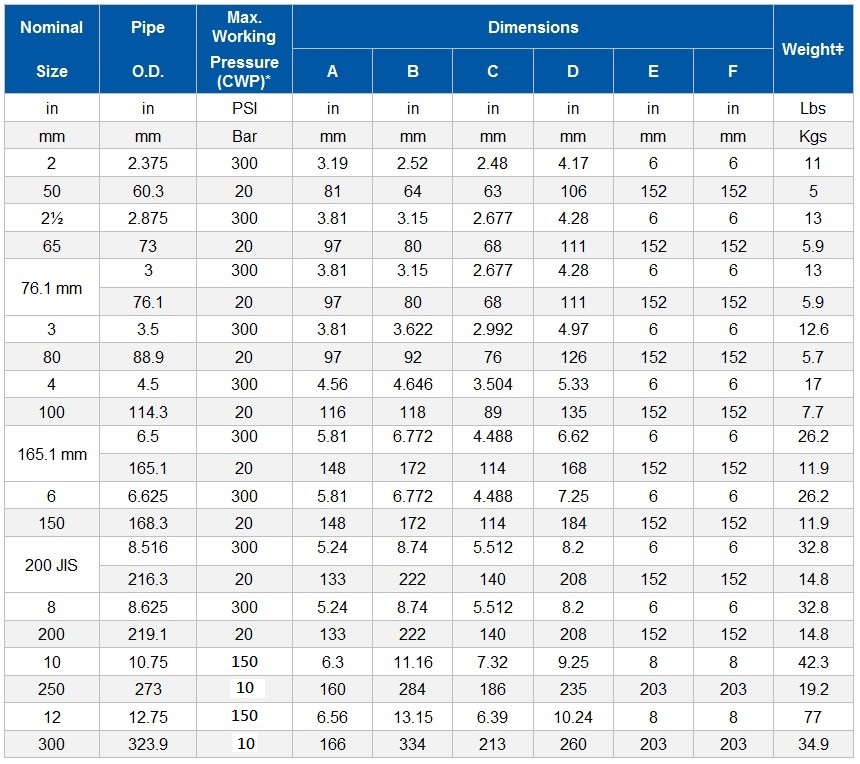

ǂ The weight includes the worm gear.
*Working pressure is based on connection with roll- or cut-grooved standard wall stainless steel pipe.
